Washing Tower

The filling static washing towers (sometimes employed within the Multistage Wet Scrubber) are used mostly to kill vapors/gas by leveraging the physical phenomena of condensation and by the absorption from a liquid, which is just water in most of the cases. Other times, when necessary, appropriate chemical solutions are used and, through the chemical reaction, they allow the uptake of any harmful compound in the air to be purified.

This type of wet scrubber is very simple and it owns the characteristic of being equipped with special filling bodies that have a large specific surface, and when they are wet by the washing liquid, they facilitate the contact between liquid and gas phase, resulting in the uptake of the pollutants.



MAX AIR FLOW RATE TREATED: 250,000 m3/h



APPLICATIONS:

  • Chemistry
  • Food
  • Galvanizing
  • Plastic
  • Deodorization

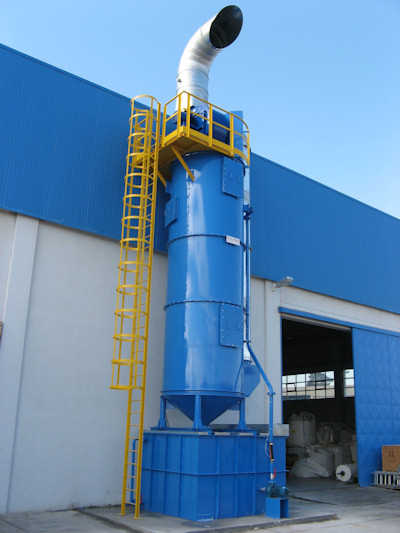

Fume cleaning system for polypropylene vapor
- Fume-cleaning system for polypropylene vapor
- Wet scrubber / Washing tower
- Airflow rate 20,000 m3/h
